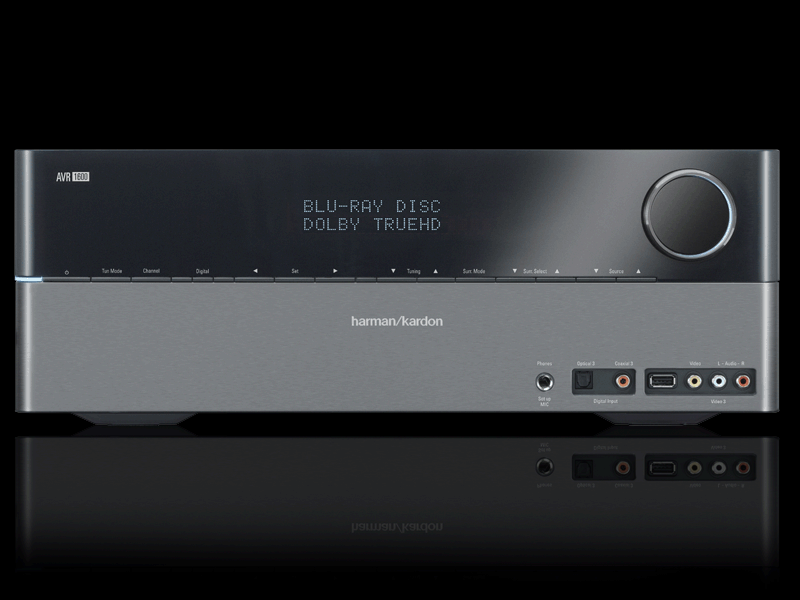

AVR 1600 7 x 50W 7.1-Channel A/V Receiver
The AVR 1600’s three HDMI™ inputs, one HDMI output, two HDTV-ready component video inputs, all the latest Dolby and DTS® audio modes, our own Logic 7® processing and the EzSet/EQ™ system for precise room calibration make the AVR 1600 the perfect A/V receiver for budget-conscious film lovers and audiophiles. Seven high-current, ultrawide-bandwidth amplifier channels make movies and video gaming more exciting, while adjustable A/V Sync Delay automatically corrects annoying “lip sync” problems. And a seven-device pre-programmed remote puts all of the AVR 1600’s capabilities at your fingertips.
|
Specifications |
close |
|
|
|
| Description |
7.1 Channel AVR |
| Multichannel Power (FTC) |
50x7 |
| Amplifier Type |
High-current; ±35 amps |
| THD @ Impedance |
0.07% @ 8 Ohms |
| Bandwidth |
20Hz – 20kHz |
| Bandwidth @ 1W (+0dB/–3dB) |
10Hz – 100kHz |
| Dolby Digital Plus |
Yes |
| Dolby True HD |
Yes |
| Dolby® Digital |
Dolby Digital Plus |
| Dolby Pro Logic® II |
Pro Logic® IIx |
| Dolby Virtual Speaker |
Yes |
| DTS-HD/DTS-HD Master Audio |
Yes |
| DTS® 5.1 |
Yes |
| DTS-ES® 6.1 Discrete & Matrix |
Yes |
| DTS 96/24™ |
Yes |
| DTS Neo:6® |
Yes |
| DTS® High Resolution |
Yes |
| Logic 7® |
Yes |
| Headphone Modes |
2-Channel, Harman Headphone |
| EzSet® Capability |
EzSet/EQ™ |
| 1080p |
Yes |
| S-Video/Component Video Inputs |
4 |
| USB Input |
Yes |
| Direct Audio Inputs |
7.1 |
| HDMI Type |
V1.3a with Deep Color; full A/V processing & Repea |
| Preamp Outputs |
Subwoofer |
| Bass Management |
Quad crossover |
| On-Screen Display |
Yes , all video formats |
| Input Titling |
All inputs |
| DSP Processor |
Cirrus® CS 49700 |
| High Resolution GUI |
No |
| A/V Sync Delay per Input |
180 mS |
| IEC Detachable Power Cord |
No |
| System Remote |
7-Device, preprogrammed |
| IR-In/Out Jacks |
Yes |
| IR Carrier Output |
Yes |
| Discrete Remote On/Off Codes |
Yes |
| External Data Port |
USB |
| Speaker Terminals |
Color-coded binding posts |
| Dimensions (H x W x D) |
6 1/2" x 17 5/16" x 15" |
| Weight |
27.7 lb |
| Output DACs |
192kHz/24-bit |
|
